ALUSTAL | Die-cast radiators | Fondital English Site

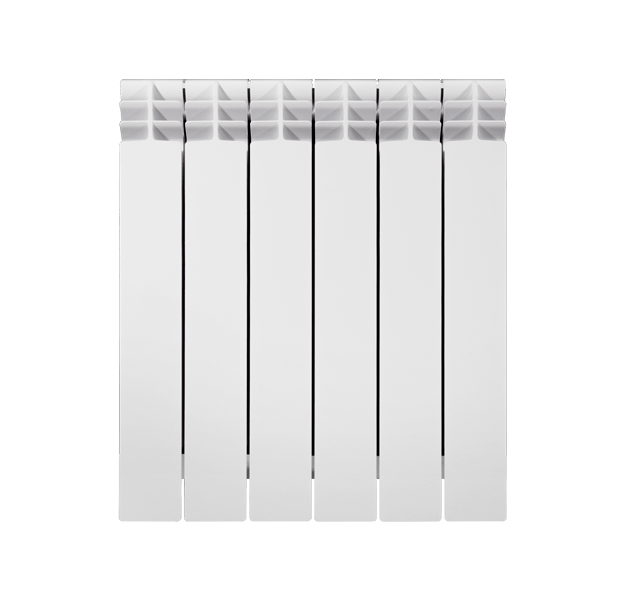

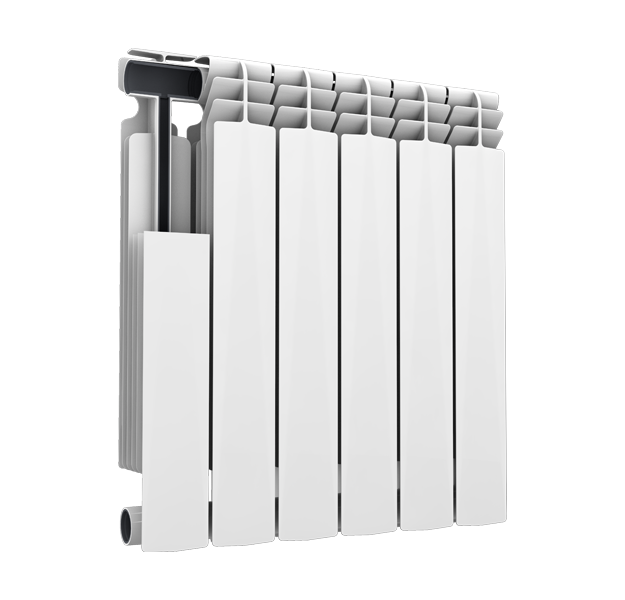

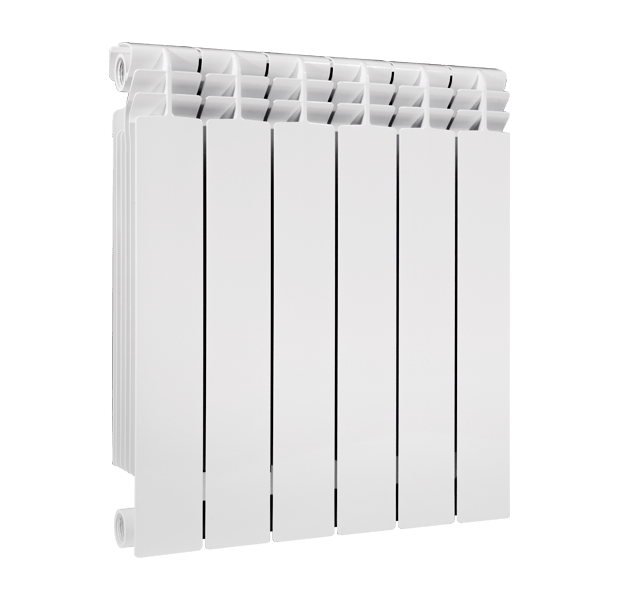

Our bimetal radiator Alustal is particularly suitable for the installation in high-rise buildings thanks to its excellent resistance to very high pressure and corrosion even at pH levels higher than aluminium radiators.

Pure White RAL 9010

PLUS

Modern and appealing design
100% recyclable
Great thermal conductor
High resistance to corrosion
Maximum working pressure 40 bar
Bursting pressure 120 bar
Radiator maximum lifetime: 30 years
Possible use of different vector fluids such as water, oil, antifreeze liquid and steam

Request Info

BIM

500/100

Description
Technical specifications
Documentation

All models ALUSTAL are guaranteed 20 years from installation date on manufacturing faults, provided that the installation has been performed in compliance with the current norms and respecting the instructions relating to the installation, the correct use and the correct maintenance.

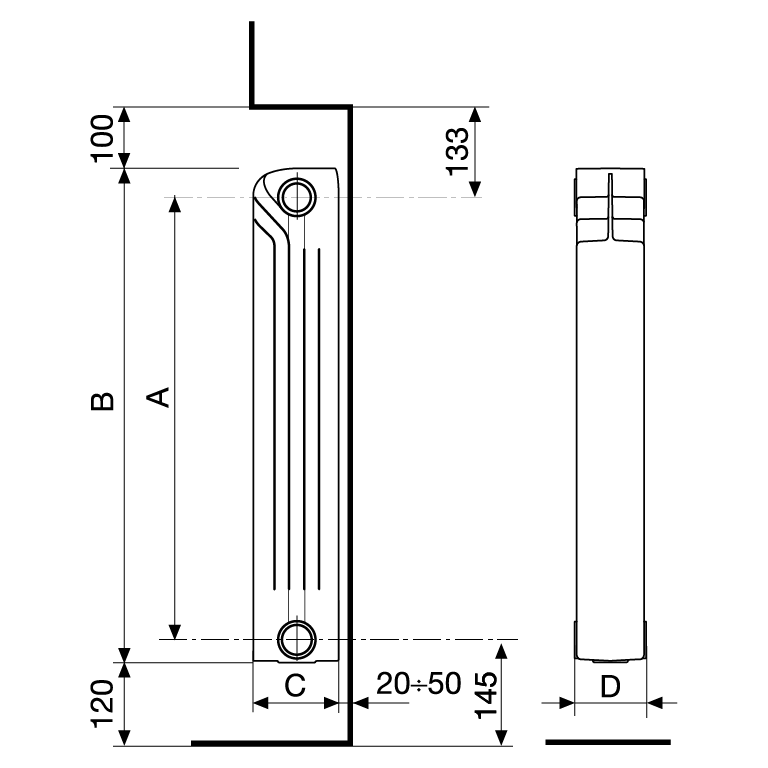

Models	Depth (C) mm	Height (B) mm	Centre distance (A) mm	Length (D) mm	Connection diameters (inches)	Water capacity (litres/sect.)	Heat output W/sect. (ΔT 30)	Heat output W/sect. (ΔT 50)	Exponent n	Coefficient (Km)
500/100	97	559	500	80	G1	0,18	59,4	116,8	1,3248	0,6557

Maximum working pressure: 1600 kPa (16 bar)
Characteristic equation of the model Ф=Кm ΔТn.
The thermal efficiency values shown comply with the European Standard EN 442.

Catalogues
- Downloads
  7.32 MB

  CTC RADIATORS - EN
Technical instructions
- Downloads
  0.17 MB

  IST DIE-CAST RADIATORS
