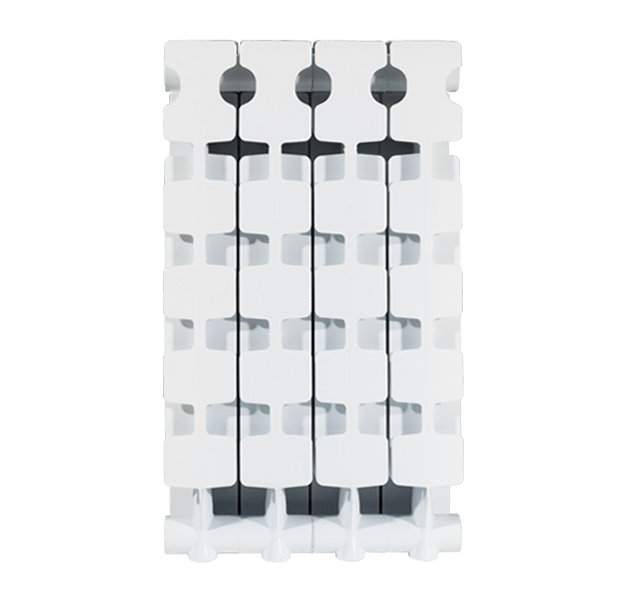

CALIDOR SUPER B4

A high degree of innovation, achieved thanks to the 3 patents this product was able to obtain, allows the Calidor Super B4 radiator to be ideal for renovations and low temperature heating systems.

Pure White RAL 9010

PLUS

Optimal weight-to-heat output ratio
Double coating for lasting finish: anaphoresis + powder coating
State-of-the-art technology protected by three international patents
Weldless base assembled with an exclusive thermoelectric joining technology
Modular: perfect for any space

Request Info

BIM

Description
Technical specifications
Documentation

All models CALIDOR SUPER B4 are guaranteed 10 years from installation date on manufacturing faults, provided that the installation has been performed in compliance with the current norms and respecting the instructions relating to the installation, the correct use and the correct maintenance.

Models	Depth (C) mm	Height (B) mm	Centre distance (A) mm	Length (D) mm	Connection diameters [inches]	Water capacity [litres/sect.]	Heat output W/sect. (ΔT 30)	Heat output W/sect. (ΔT 50)	Exponent n	Coefficient [Km]
350/100	97	407	350	80	G1	0,20	47,2	89,9	1,2598	0,6506
500/100	97	558	500	80	G1	0,26	64,1	123,8	1,2890	0,7991
600/100	97	658	600	80	G1	0,31	74,0	143,6	1,2981	0,8950
700/100	97	758	700	80	G1	0,36	83,1	161,3	1,2998	0,9986
800/100	97	858	800	80	G1	0,39	91,1	177,7	1,3085	1,0635

Maximum working pressure: 1600 kpa (16 bar); Maximum working temperature: 120 °C
Characteristic equation of the model Ф=Кm ΔТn
The thermal efficiency values shown comply with the European Standard EN 442-1:2014 and are certified by the MRT Lab of the Milan Polytechnic, notified body №1695.
