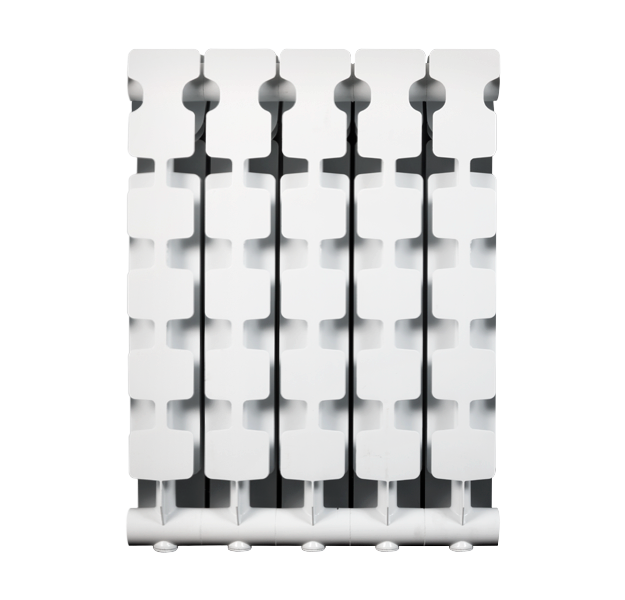

CALIDOR80 B2 is the result of a research project aimed at optimizing radiator performance in order to offer a product with excellent mechanical properties and high thermal conductivity. Designed to allow installation in any premises and blend in with any interior style, CALIDOR80 B2, entirely made of aluminium, delivers excellent heating performance for homes and commercial buildings.

Pure White RAL 9010

PLUS

Ideal for low-temperature applications
Double coating for lasting finish: anaphoresis + powder coating
100% MADE IN ITALY
Light for easier handling and installation

Request Info

BIM

Description
Technical specifications
Documentation

All models CALIDOR80 B2 are guaranteed 10 years from installation date on manufacturing faults, provided that the installation has been performed in compliance with the current norms and respecting the instructions relating to the installation, the correct use and the correct maintenance.

Models	Depth (C) mm	Height (B) mm	Centre distance (A) mm	Length (D) mm	Connection diameters [inches]	Water capacity [litres/sect.]	Heat output W/sect. (ΔT 30)	Heat output W/sect. (ΔT 50)	Exponent n	Coefficient [Km]
500/80	77	556	500	80	G1	0,24	51,8	100,2	1,2935	0,6358
600/80	77	658	600	80	G1	0,28	59,8	114,9	1,2774	0,7765
700/80	77	757	700	80	G1	0,39	68,7	132,7	1,2878	0,8608
800/80	77	858	800	80	G1	0,42	75,6	147,1	1,3031	0,8984

Maximum working pressure: 1600 kpa (16 bar); Maximum working temperature: 120 °C
Characteristic equation of the model Ф=Кm ΔТn
The thermal efficiency values shown comply with the European Standard EN 442-1:2014 and are certified by the MRT Lab of the Milan Polytechnic, notified body №1695.
