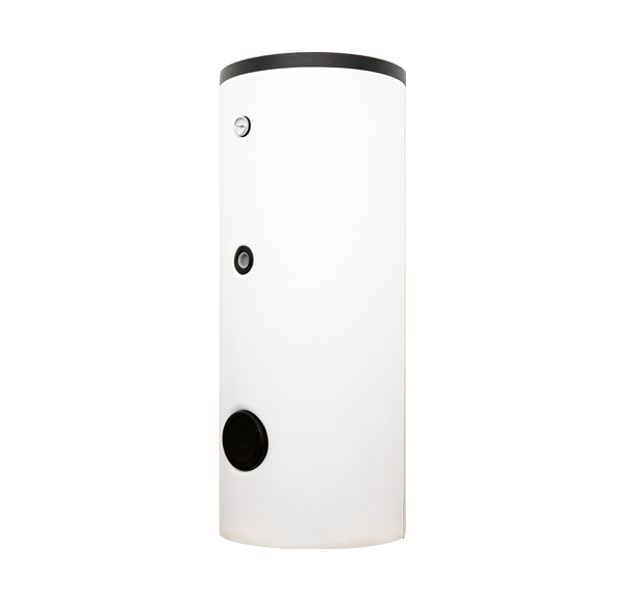

WHDHP SSH

Dhw and buffer tank hybrid combined storage tank for system technical water
to be matched specifically with air - water heat pump systems

PLUS

Space-saving compact installation: buffer tank serves as the base for the storage tank, vertically developed
Thermometer and holders for probe included in the supply
Magnesium anode for anodic protection
Wide heat exchange surface - high efficiency coil
Inspection flange
It can be integrated with solar coil (extra accessory), installable in the inspection flange

Request Info

BIM

WHDHP SSH

Description
Technical specifications
Documentation

FEATURES

External paint
Vitrification treatment coated internal surface
Carbon steel coil
Injected rigid polyurethane thermal insulation
Covering in white skai

Models	Energy efficiency class	Buffer tank hot water storage [l]	DHW storage tank volume [l]	Heat loss [W]	D x H [mm]	Empty weight [Kg]
300 SSH		80	270	73	640 x 1925	156
500 SSH		74	450	84	790 x 2040	207

Technical instructions
- Downloads
  8.15 MB

  IST BUFFER TANK WHDHP SSH - EN
Catalogues
- Downloads
  8.42 MB

  CTG PROCIDA - EN
