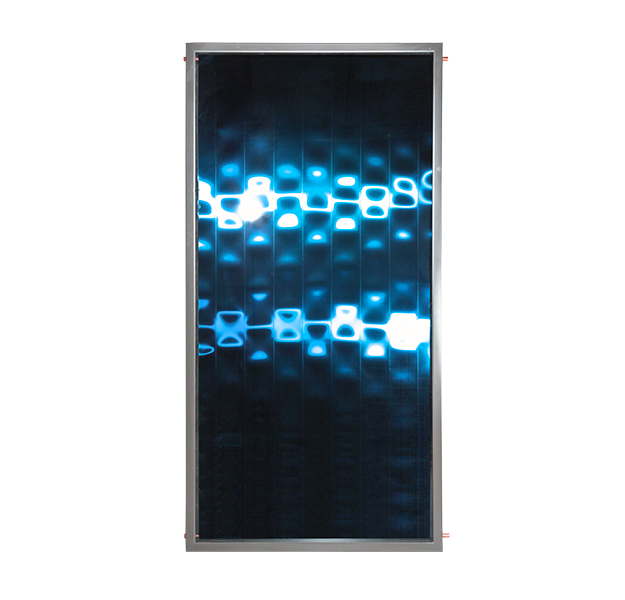

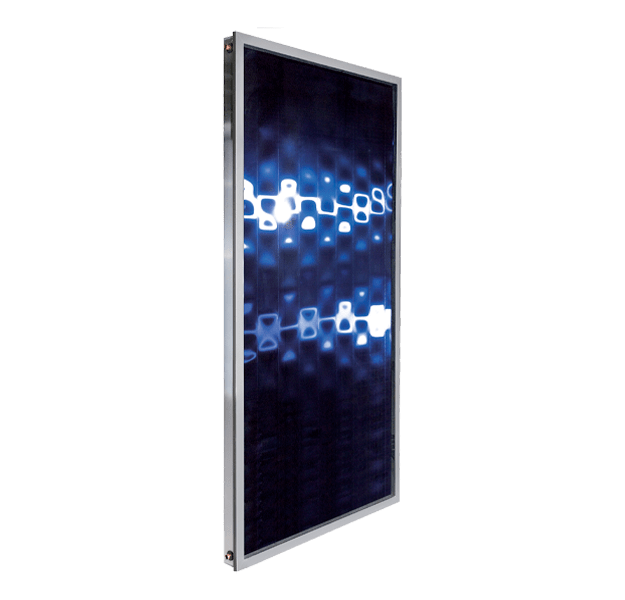

Solar thermal flat-plate collectors for installation on flat roof and pitched-roof (parallel or in-roof installation)
PLUS
- Aluminium tank-frame
- Mineral wool insulation, 40 mm thick
- High-efficiency aluminium absorber
- Copper pipes
- Laser welding
FEATURES
- Suitable for installation in vertical position with the short side on top
- Tempered clear glass with low iron content
- Possibility to connect up to 8 collectors in series
| Models |
Absorber surface [m^2] |
Total gross surface [m^2] |
Absorbance [%] |
Emission [%] |
Net weight [kg] |
| HWF 20 |
1,93 |
2,06 |
95 |
5 |
32,2 |
| HWF 26 |
2,47 |
2,62 |
95 |
5 |
39,3 |
