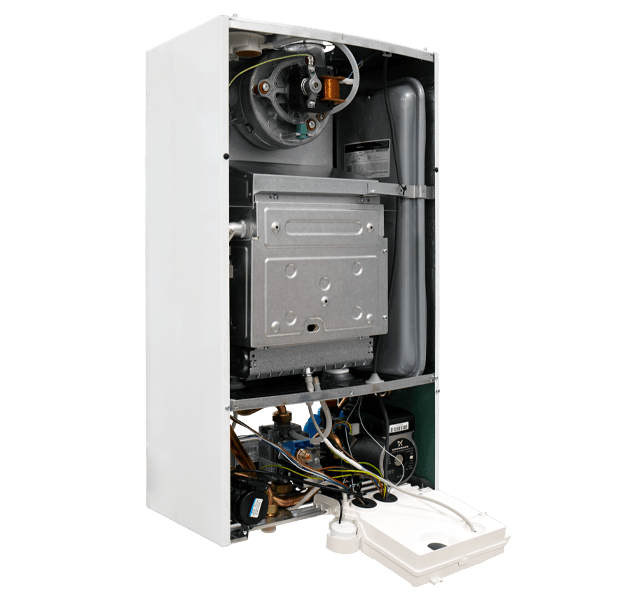

MINORCA CTFS CU - EXTRA EU | Wall-hung standard boilers

Wall-hung gas boiler with sealed chamber and forced draught with instant DHW production

PLUS

Mono-thermal, copper heat exchanger
Compact dimension, only 250 mm deep
LCD user interface with diagnostics
Ambient temperature can be set from the boiler if an ambient probe is installed
Ambient temperature probe supplied as standard

Request Info

BIM

MINORCA CTFS

Description
Technical specifications
Documentation

FEATURES

Stainless steel DHW plate heat exchanger
Exclusive pump in compact version with integrated air-purging device
LCD interface to view CH flow water temperature, DHW temperature, failure codes, CH setting, DHW setting and operating status setting
Programmable parameters to adapt the boiler to the installation and alerts history
Hydraulic unit in composite material
Heating expansion vessel - 6 litres

This model is ONLY available for EXTRA EU countries

Models	Alimentation	Rated heat input [kW]	Dimensions L x H x P [mm]	Gross weight [Kg]
CTFS 9	METHANE LGP	10,4	400x700x250	25,00
CTFS 11	METHANE LGP	12,3	400x700x250	25,00
CTFS 13	METHANE LGP	14,2	400x700x250	25,00
CTFS 15	METHANE LGP	16,4	400x700x250	25,00
CTFS 18	METHANE LGP	20,0	400x700x250	25,50
CTFS 24	METHANE LGP	25,5	400x700x250	25,50

Technical instructions
- Downloads
  4.43 MB

  IST MINORCA MONO - EXTRA EU - EN
Catalogues
- Downloads
  14.62 MB

  CATALOGUE BOILERS - EXTRA EU - EN
- Downloads
  1.16 MB

  PAMPHLET CTG MINORCA CTFS CU - EXTRA EU - EN
