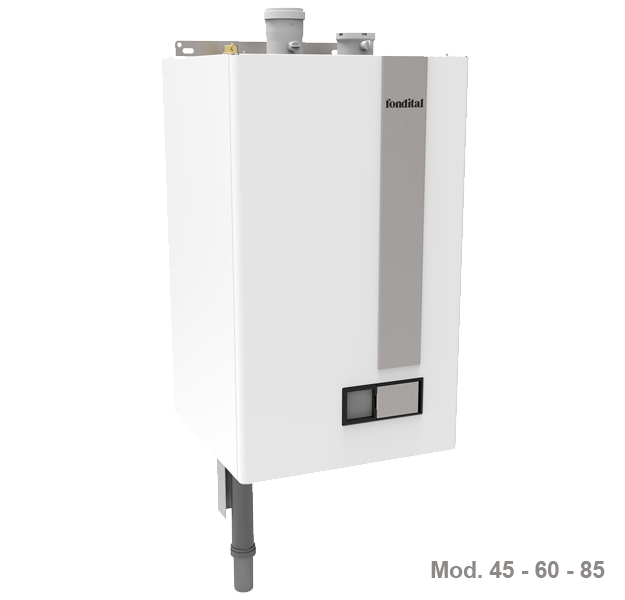

Wall-hung condensing boiler CH only - Installation in cascade heating systems up to 900 kW
PLUS
- High modulation ratios, up to 1:10
- Integrated flue gas check valve
- Multilingual user’s interface
- Possibility to connect up to 6 boilers in a cascade-type connection with Master-Slave logic
FEATURES
- High-efficiency stainless steel heat exchanger
- Variable-speed combustion fan
- Alarm output or LPG valve control, input for external probe, ambient thermostat, water heater probe, connection for solar pump, plant pump
- 0-10 V control in temperature for regulation
- Standard: Split air / flue gas connection, paper template, wall installation kit, condensation drain trap, intake closing plugs
- Class 6 of NOx emissions
| Models |
Alimentation |
Rated heat input [kW] |
Dimensions
L x H x D [mm] |
Gross weight [Kg] |
| ITACA CH KR 45 |
METHANE
PROPANE |
40,0 |
500 x 834 x 510 |
71,0 |
| ITACA CH KR 60 |
METHANE
PROPANE |
60,0 |
500 x 834 x 510 |
75,5 |
| ITACA CH KR 85 |
METHANE
PROPANE |
81,0 |
500 x 834 x 510 |
100,0 |
| ITACA CH KR 120 |
METHANE
PROPANE |
115,0 |
500 x 883 x 689 |
112,0 |
| ITACA CH KR 150 |
METHANE
PROPANE |
140,0 |
500 x 883 x 689 |
133,5 |
