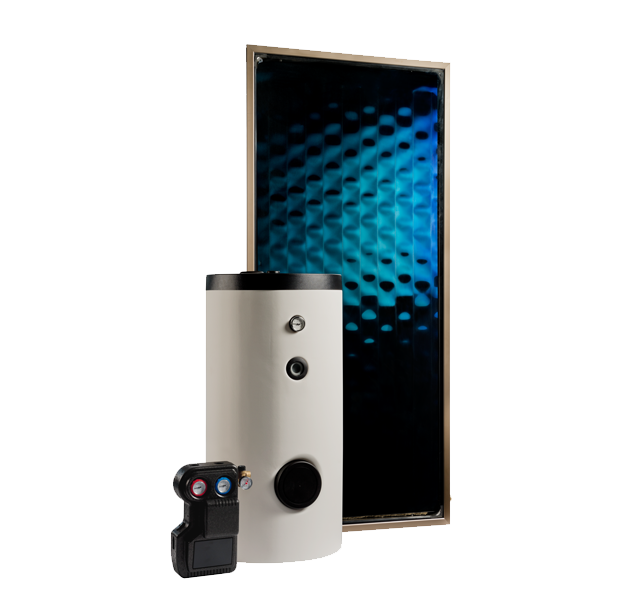

Solar system with forced circulation and heat integration into the water heater for the production of domestic hot water.
The Sulpack Pro system can be fitted in conjunction with boilers for heating only.
The system does not include roof mounting system since it must be chosen among the specified systems for the various types of collectors and connection pipes.
.png)
In this solar system configuration the water heater is located inside the building, preferably close to the boiler house.
Suitable temperature probes regulate the operation of a pump which circulates the heat-transfer fluid in the solar system.
The storage tank in this case is mounted vertically, to ensure better stratification.
| Models | Persons [num.] | Collectors [num.] | Collectors [m^2] | Tank [litres] | Expansion vessel | Solar fluid [litri] |
|---|---|---|---|---|---|---|
| SULPACK PRO VC 200 | 1 - 3 | 1 | 2,5 | 200 | ES 12 | 10 |
| SULPACK PRO VC 300 | 1 - 3 | 2 | 5 | 300 | ES 18 | 20 |
| SULPACK PRO VC 500 | 3 - 5 | 3 | 7,5 | 500 | ES 25 | 30 |
| SULPACK PRO VC 1000 | 10 - 12 | 6 | 15 | 1000 | ES 50 | 60 |
| SULPACK PRO HC 200 | 1 - 3 | 1 | 2,5 | 200 | ES 12 | 10 |
| SULPACK PRO TC 200 | 1 - 3 | 1 | 2,5 | 200 | ES 12 | 10 |
| SULPACK PRO HC 300 | 1 - 3 | 2 | 5 | 300 | ES 18 | 20 |
| SULPACK PRO TC 300 | 1 - 3 | 2 | 2,5 | 300 | ES 18 | 20 |
| SULPACK PRO HC 500 | 3 - 5 | 3 | 7,5 | 500 | ES 25 | 30 |
| SULPACK PRO TC 500 | 3 - 5 | 3 | 7,5 | 500 | ES 25 | 30 |
| SULPACK PRO HC 1000 | 10 - 12 | 6 | 15 | 1000 | ES 50 | 60 |
| SULPACK PRO TC 1000 | 10 - 12 | 6 | 15 | 1000 | ES 50 | 60 |
